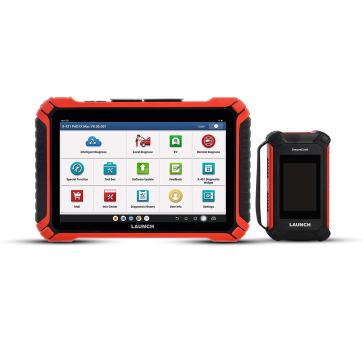

Ask Question About Launch X-431 PAD IX Link: Ultra-Fast Automotive Diagnostic
Product Description
Details
Features:
1. Full system vehicle coverage for U.S., Asian and European markets: 150+ passenger cars, 110+ commercial vehicles(optional), and 140+ new energy vehicles(optional), which is continuously getting updated.
2. The diagnostic software is available to purchase separately on the 'MALL' as demanded at any time.
3. Topology mapping gives a visual checking on DTCs and all systems communication status.
4. X-431 FIX diagnostic database providing detailed interactive wiring diagrams and illustrations enables technicians to complete every repairing job.
5. Support automotive communication protocols CAN/CANFD/DoIP and automotive communication standards J2534.
6. Guided function for VW and AUDI.
7. The basic functions include reading & clearing DTC, remote diagnosis, Bi-directional control, live data graph, wireless software update etc.
8. Advanced coding and programming function.
9. Optional ADAS calibration function increases more revenue.
10. An extended solution to support TPMS service.
11. Build-in repair information and training video modules help to track and fix issues fast.
12. Sunlight-readable screen and IP65 waterproof & dustproof.
Specification
|
X-431 PAD9 LINK |
|
|
Operation System |
Andorid 13.0 |
|
CPU |
2.0GHz Octa-core |
|
Display |
13.6' touch screen 2560*1600 |
|
Memory |
12GB |
|
Storage |
512GB |
|
Camera |
Rear 20MP, Front 8MP |
|
Battery |
9360mAh @7.6V/71.1Wh |
|
VCI Communication |
2.4 & 5GHz Dual WIFI |
|
Interface |
Type C, Type A, DC IN, Micro SD, Mini HDMI |
|
Working Temperature |
0℃~50℃ |
|
Dimension |
377*246*35 mm |
Service Functions
- Brake Reset
- Oil Maintenance Reset
- Steering Angle Reset
- Battery Matching
- ABS Bleeding
- Electronic Throttle Relearn
- TPMS Reset Database
- DPF Regeneration
- AC System Relearn/lnitialization
- Adaptive Front Lighting
- Adblue Reset
- Air/Fuel Reset
- Gear Learning
- EGR Adaption
- Engine Power Balance Monitoring
- Stop/Start Reset
- Gearbox Relearn
- IMMO Program
- High-Voltage Battery Diagnostics
- Immobilizer Reset
- Injector Coding
- Intelligent Cruise Control System
- Language Change
- Motor Angle Calibration
- Air Level Calibration
- Nox Sensor Reset
- Coolant Bleed
- Seat Occupancy Calibration
- Gas Particular Filter Regeneration
- Sunroof Reset
- Tire Reset
- Transport Mode
- Windows Calibration
- ECU Reset
- Rainfall Light Sensor
- Turbocharging Matching
- FRM Reset
- Gateway Module Data Calibration
- Clutch Matching
- ODO Check
- RESETMSVIN
Additional Information
Additional Information
| PDF Content | No |
|---|---|
| Weight | No |
| Country of Manufacture | |
| Book Demo | Yes |
